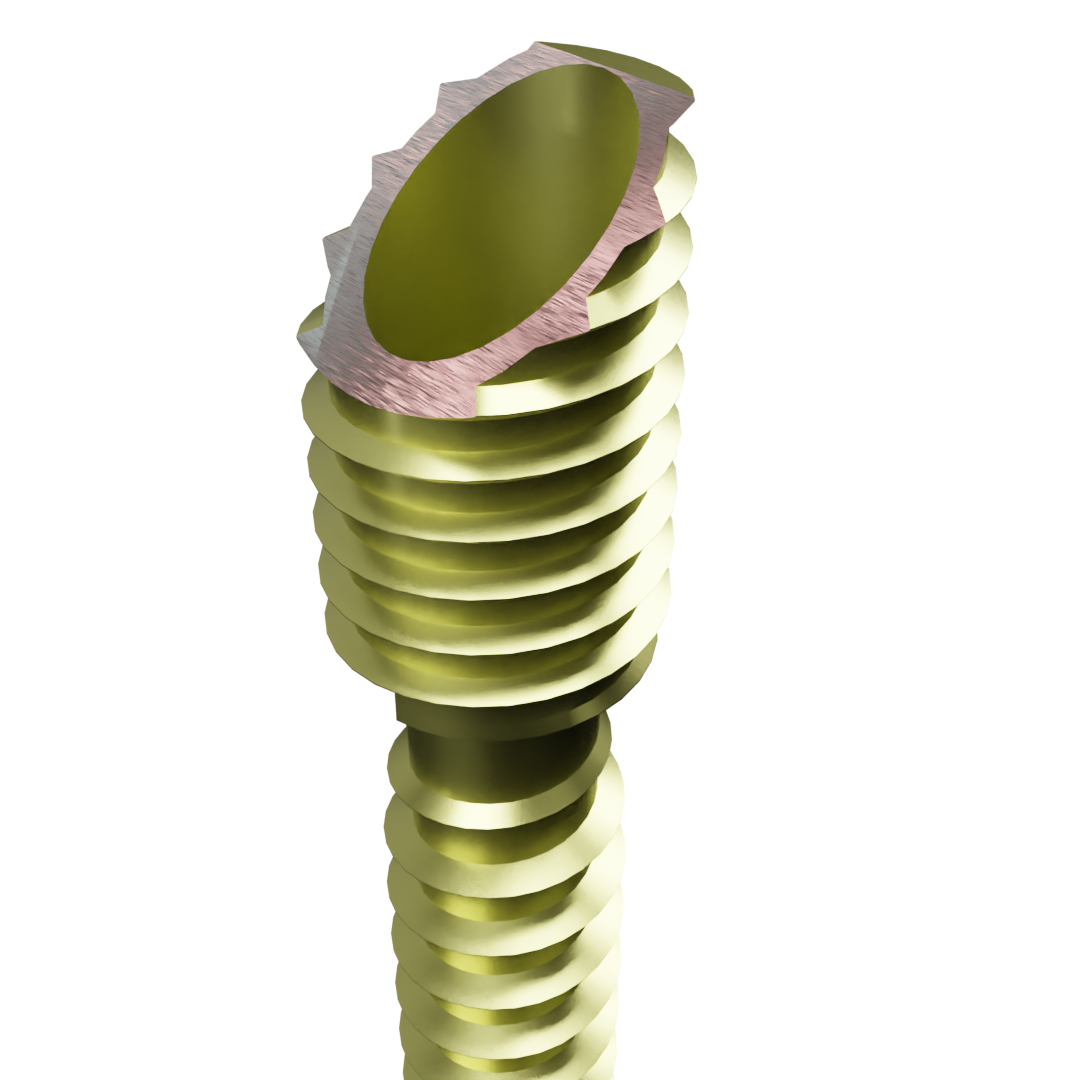

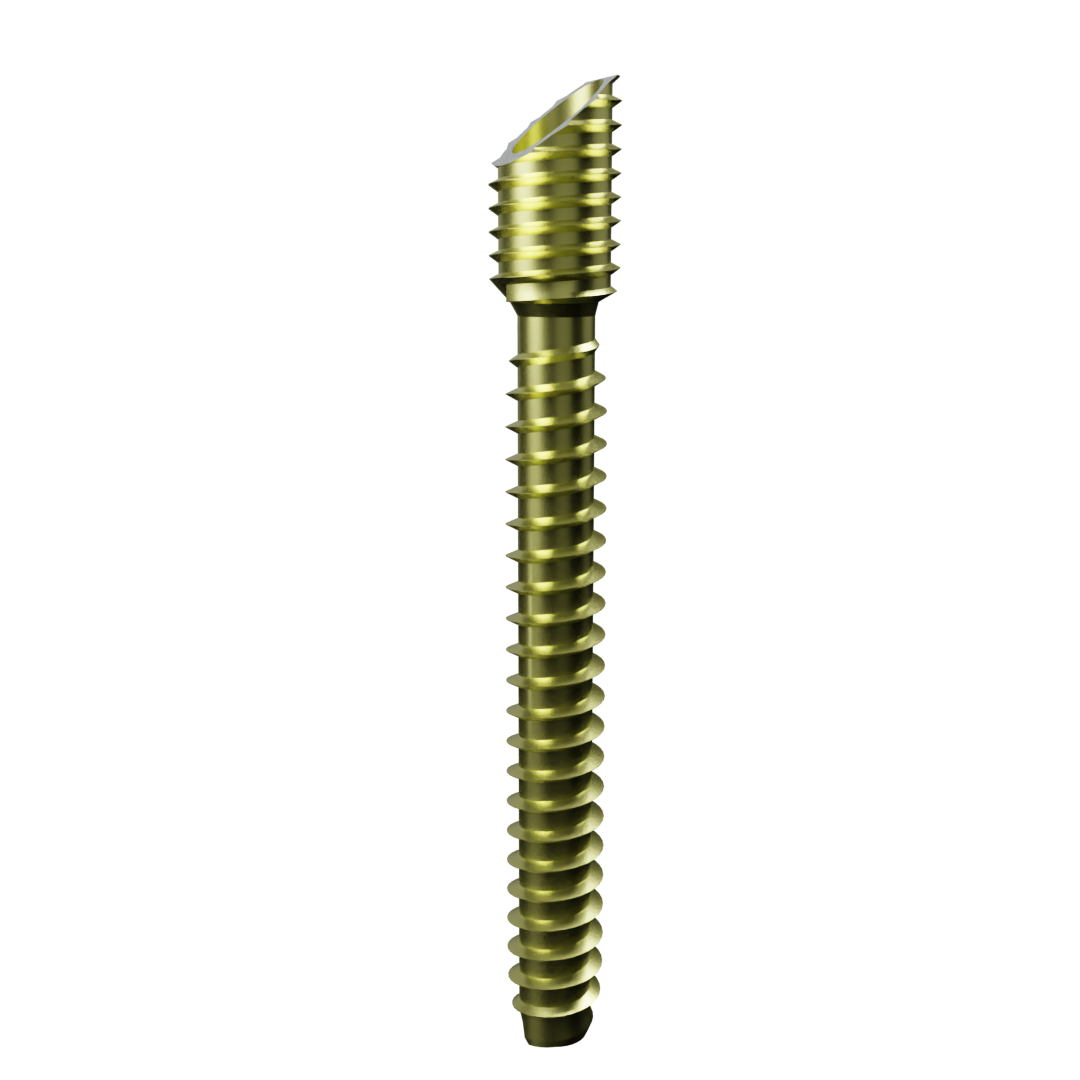

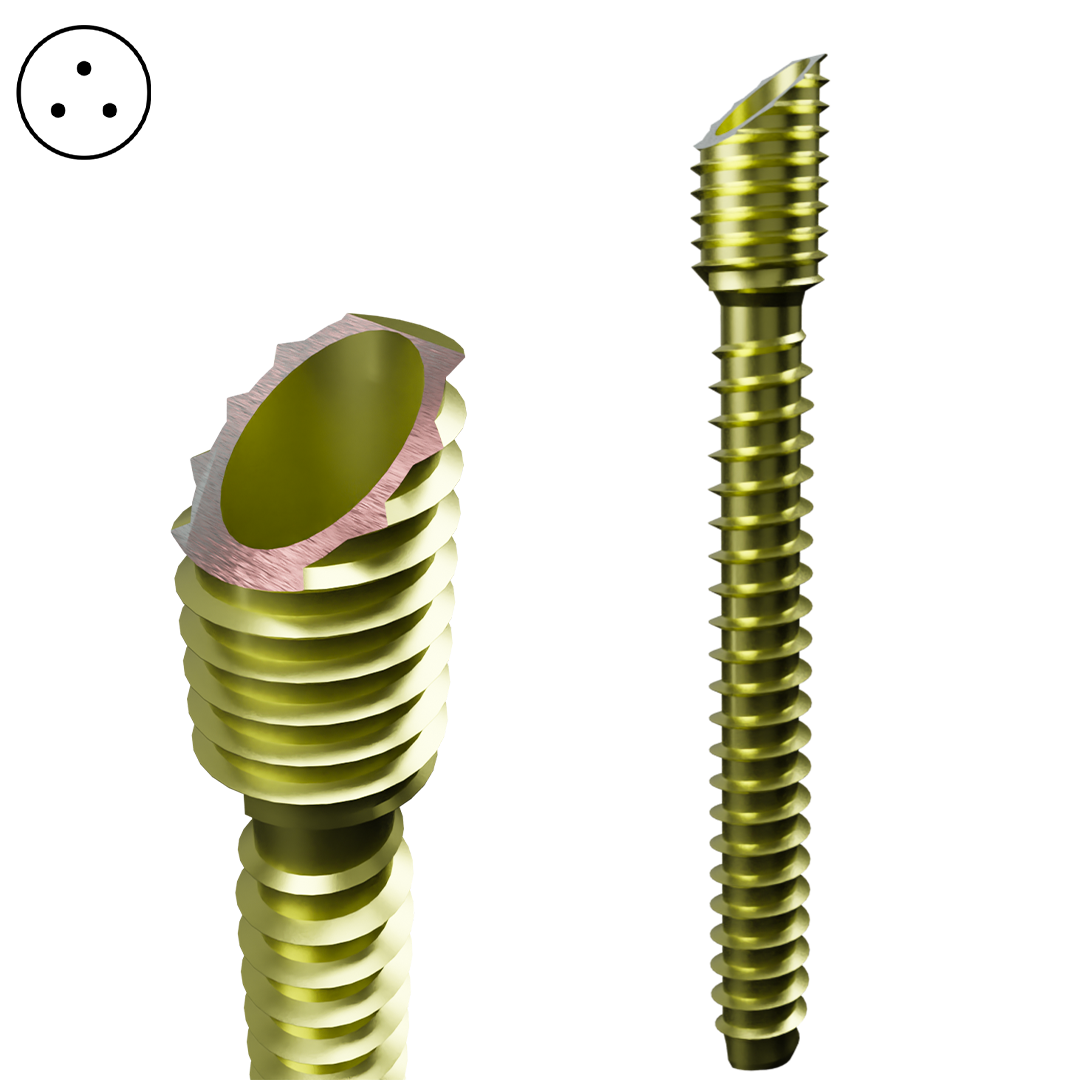

MI SCREW Ø 3 mm
€0,00
DOWNLOAD:
Brochure MI SCREW ENG- Standard ISO 5832-3 Titanium screw
- Self-drilling self-tapping screw
- Forefoot
- Sterile packaging
- Pin (K-Wire) Ø 1.0 mm for Ø 3.0 mm screw | Pin (K-Wire) Ø 1.5 mm for Ø 4.0 mm screw
INDICATIONS FOR USE
MI SCREW is ideal for the treatment of hallux valgus with the “chevron” technique in minimally invasive and percutaneous surgery.
The slanted head allows it to be positioned in the first cortex in order to minimize its prominence and consequently the irritation of the soft tissues.
The elongation of the head when compared to the length of the head of classic screws used for the “chevron” technique, it allows better contact with the medial cortex and its angled positioning increases its stability, obtaining compression-stabilization ideal.
| MI SCREW | Ø 3.0 |
|---|---|
| LENGTH MM | REF. |
| 18 | 38.92.18 |
| 20 | 38.92.20 |
| 22 | 38.92.22 |
| 24 | 38.92.24 |
| 26 | 38.92.26 |
| 28 | 38.92.28 |
| 30 | 38.92.30 |
| 32 | 38.92.32 |
| 34 | 38.92.34 |
| 36 | 38.92.36 |
| 38 | 38.92.38 |
| 40 | 38.92.40 |
| 42 | 38.92.42 |
| 44 | 38.92.44 |
| 46 | 38.92.46 |
| 48 | 38.92.48 |
| 50 | 38.92.50 |
| 52 | 38.92.52 |
| 54 | 38.92.54 |
| 56 | 38.92.56 |
| 58 | 38.92.58 |
| 60 | 38.92.60 |
INSTRUMENTATION
| N° | PRODUCT | REF. |
|---|---|---|
| 1 | DRILL - COUNTERSINK Ø 4.0 MM | 14.37.21 |
| 2 | SCREWDRIVER TERMINAL MI SCREW Ø 4.0 MM | 14.30.10 |
| 3 | PERFORATOR Ø 4.0 MM | 14.37.33 |
| 4 | UNIVERSAL SCREWDRIVER HANDLE AO | 14.32.03 |
| 5 | 5 WIRES OF K. Ø 1.5 MM 1 3/4 POINT | 14.63.44 |
| 6 | SCREWDRIVER TERMINAL MI SCREW Ø 3.0 MM | 14.30.23 |
| 7 | THREADER Ø 3.0 MM | 14.37.24 |
| 8 | GAUGE | 14.33.33 |
| 9 | DRILL - COUNTERSINK Ø 3.0 MM | 14.37.20 |
| 10 | 5 WIRES OF K. Ø 1.0 MM 1 3/4 POINT | 14.63.48 |
| 11 | INSTRUMENT CONTAINER BOX | 14.10.01 |
