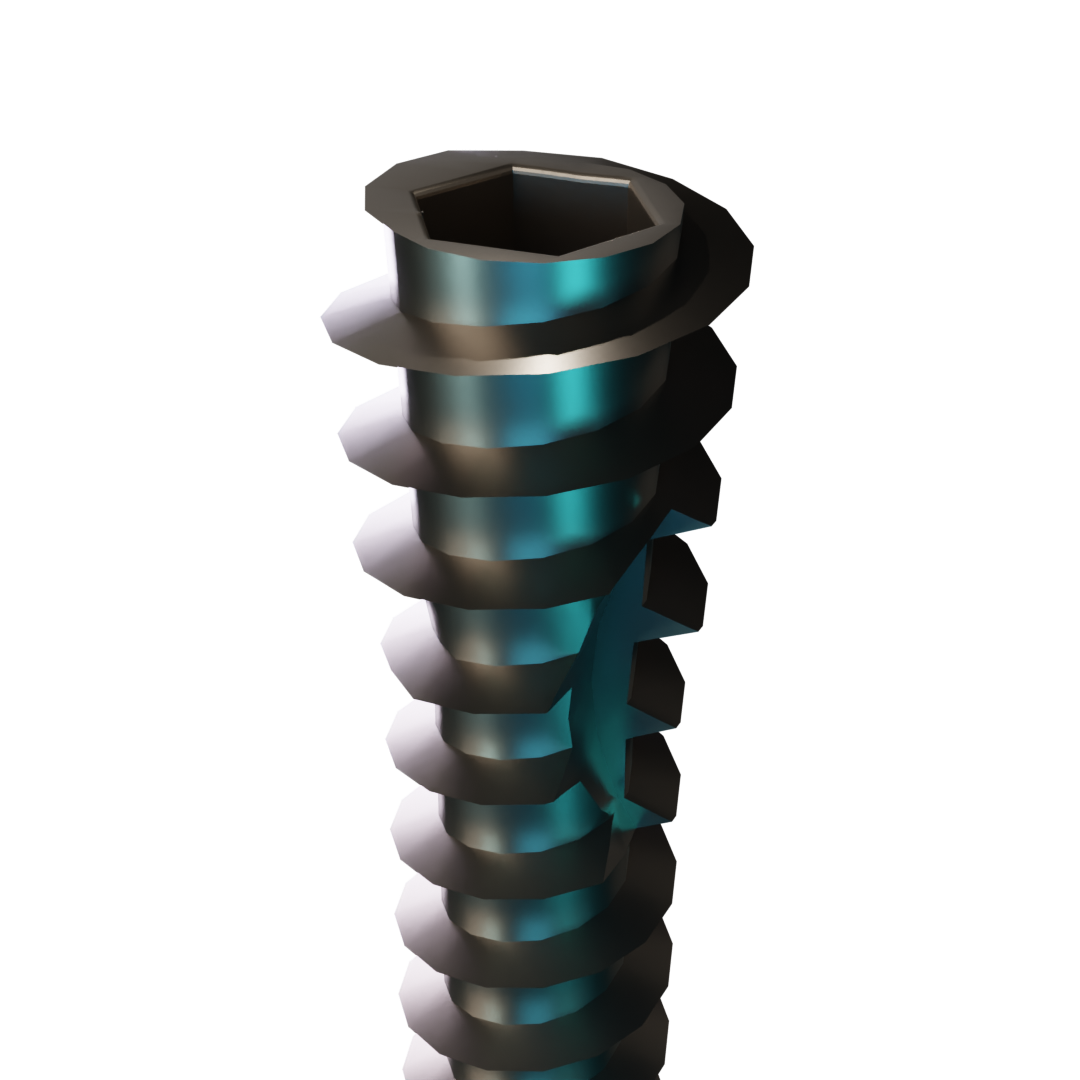

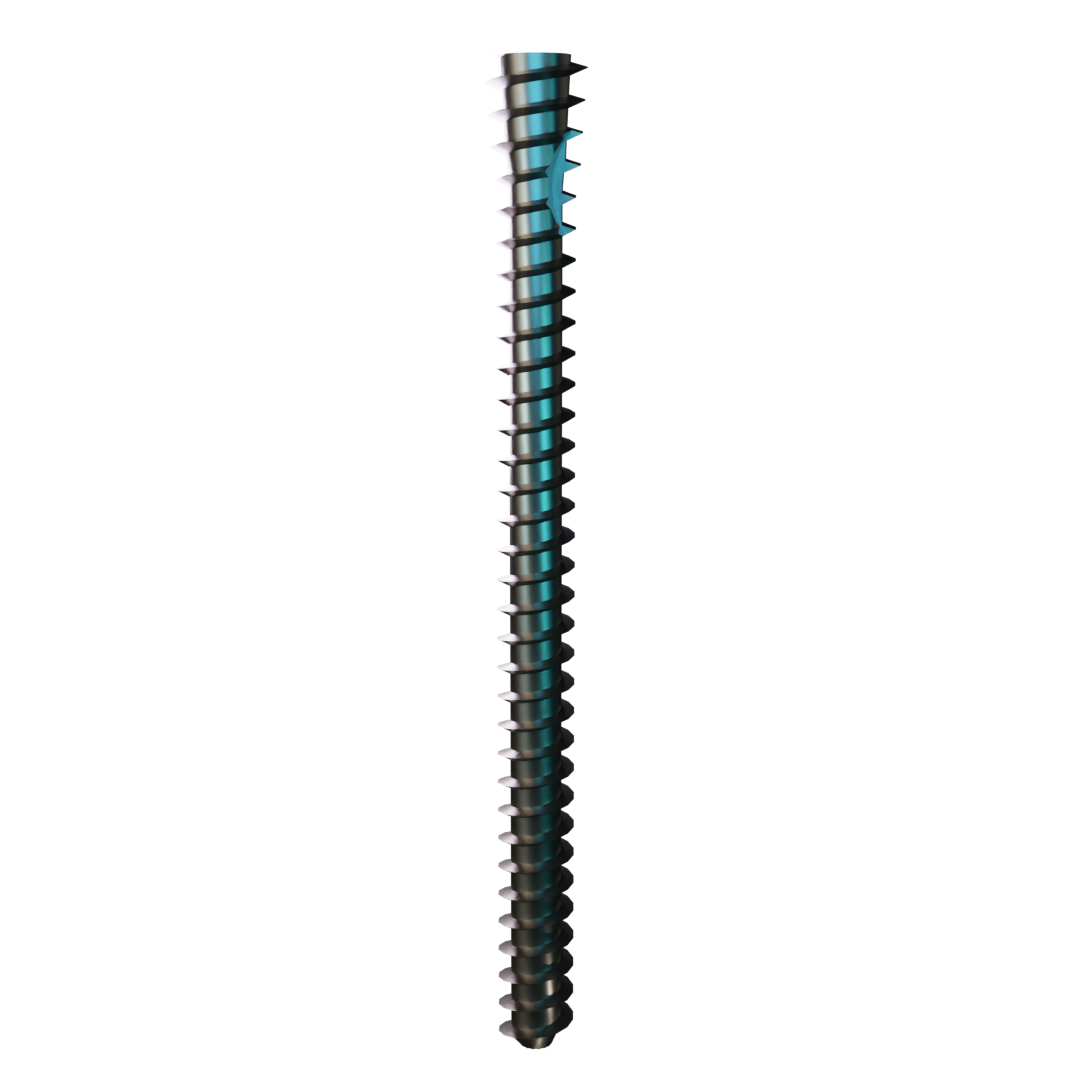

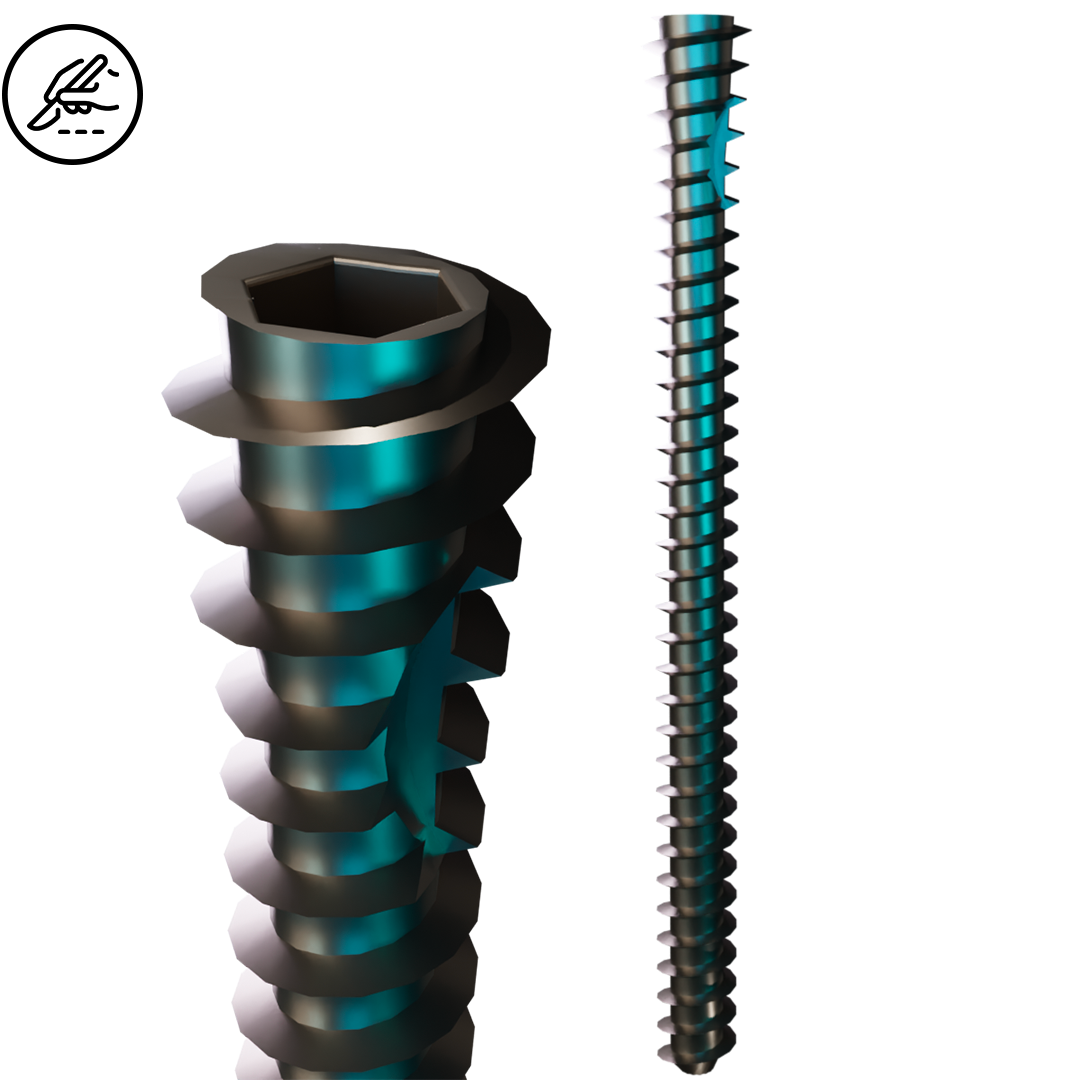

  • ARTHROSTAB Ø 7 MM

    DOWNLOAD:

    Brochure Arthrostab_ENG

    Brochure Arthrostab_ITA

    Surgical Technique Arthrostab ENG(work in progress)

    Tecnica chirurgica Arthrostab ø 7 ITA

     Scheda tecnica Arthrostab ITA

    ARTHROSTAB screws are designed to be used in the arthrodesis of the midfoot and of the hindfoot. They are used complementary to the EAGLE screws using the same instruments.

    • Standard ISO 5832-3 Titanium screw
    • Mid and hindfoot
    • Sterile packaging
    • Pin (K-Wire) Ø 1.5 mm for Ø 4.6 mm screw | Pin (K-Wire) Ø 2.2 mm for Ø 7.0 mm screw

    INDICATIONS FOR USE



    Main indications for Arthrostab screws:

    • Calcaneus osteotomy
    • Subtalar arthrodesis
    • Taloscrural arthrodesis
    LENGTH MM REF.
    30 38.22.30
    35 38.22.35
    40 38.22.40
    45 38.22.45
    50 38.22.50
    55 38.22.55
    60 38.22.60
    65 38.22.65
    70 38.22.70
    75 38.22.75
    80 38.22.80
    85 38.22.85

    INSTRUMENTATION



    Ø 7.0 mm
    Screws are used with K-wire
    Ø 2.2 mm – Lg 200 – 1 trocar tip

    PRODUCT REF.
    1 SCREWDRIVER HANDLE WITH ATTACHMENT AO 14.32.04
    2 CANNULATED DRILL-COUNTERSINK FOR SCREW Ø 7.0 MM 14.37.35
    3 CANNULATED SCREWDRIVER TERMINAL Ø 7.0 MM 14.30.18
    4 CANNULATED SCREW THREAD Ø 7.0 MM 14.33.35
    5 CANNULATED DRILL FOR SCREW Ø 7.0 MM 14.37.36
    6 CANNULATED SCREW GAUGE Ø 7.0 MM 14.33.34
    7 2 WIRES OF K Ø 2.2 MM - LG 200 MM 1 TIP 3/4 14.63.10
    8 SCREWDRIVER TERMINAL FOR SCREW Ø 7.0 MM 14.30.19
    9 CONTAINER BOX 14.10.97
