JACK-S
€0,00
DOWNLOAD:
Essential congenital pronated valgus hindfoot of child and adolescent.
In association with calcaneal medializing osteotomy with asignificant hindfoot launch in a pronated unstable adult foot.
INDICATIONS FOR USE

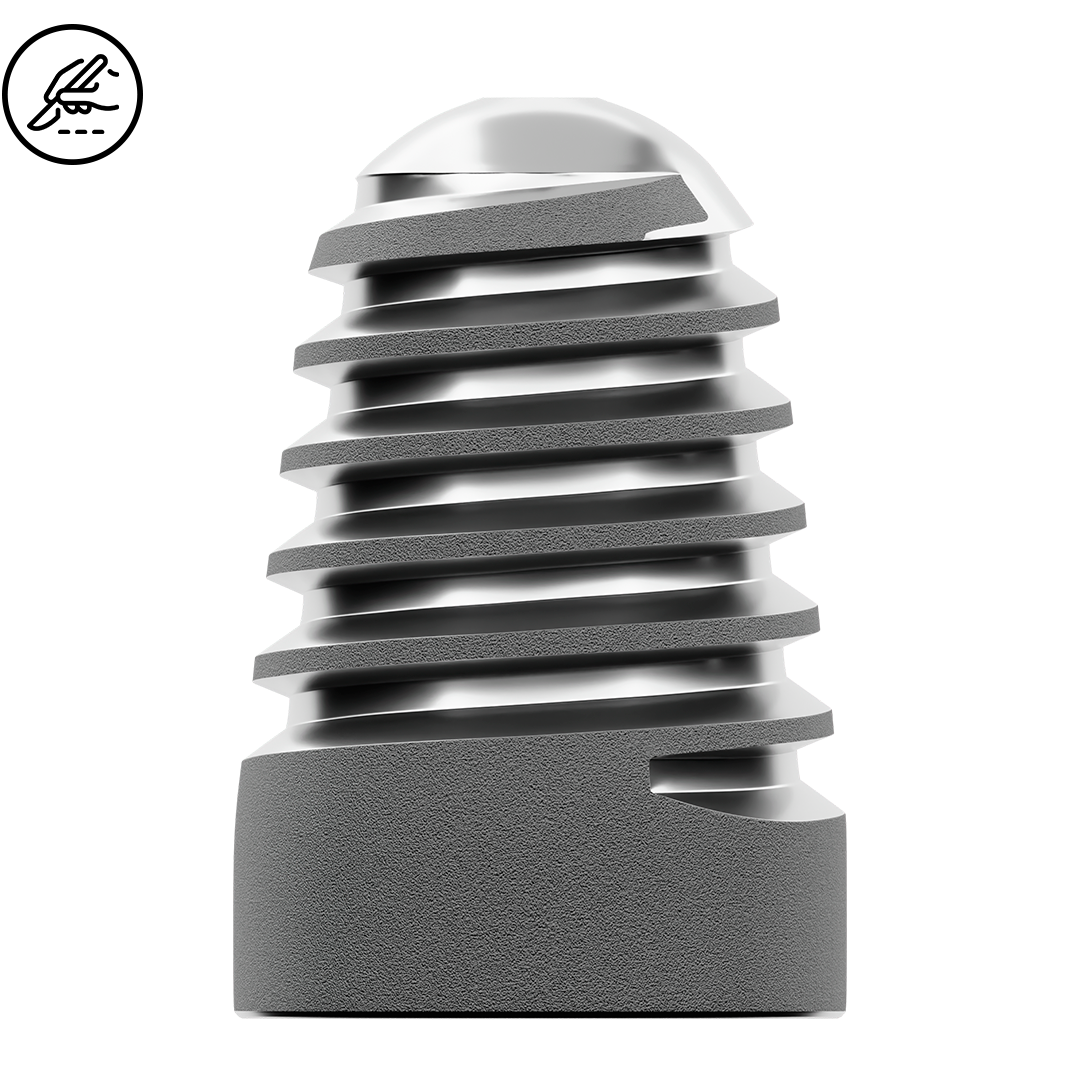

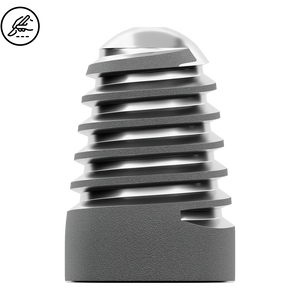

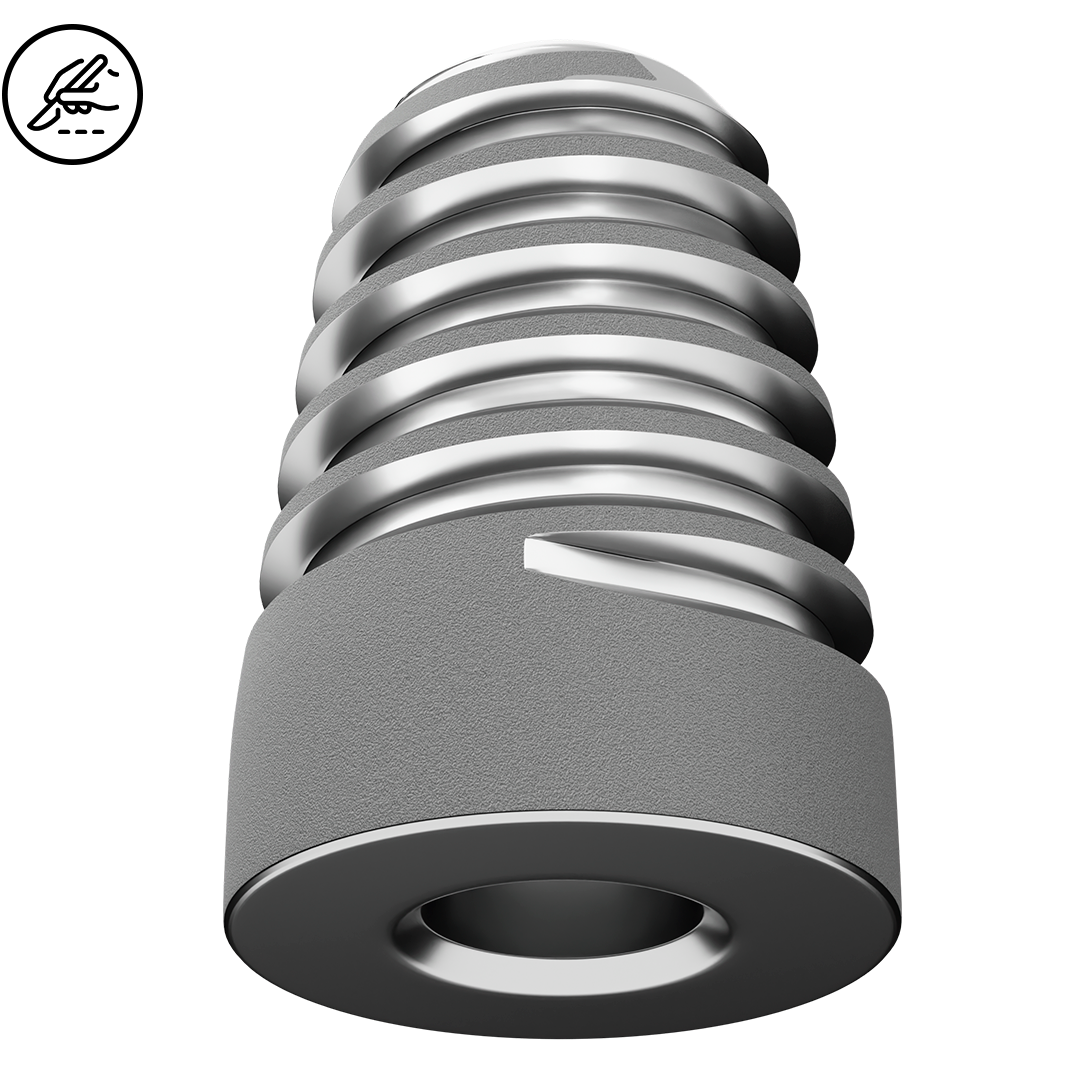

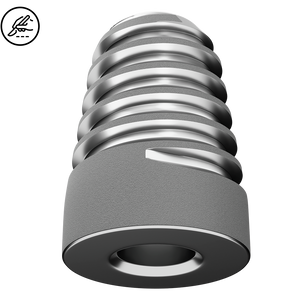

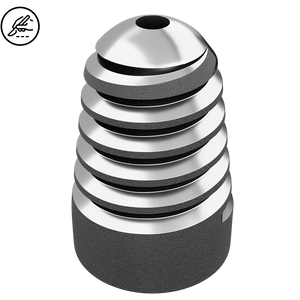

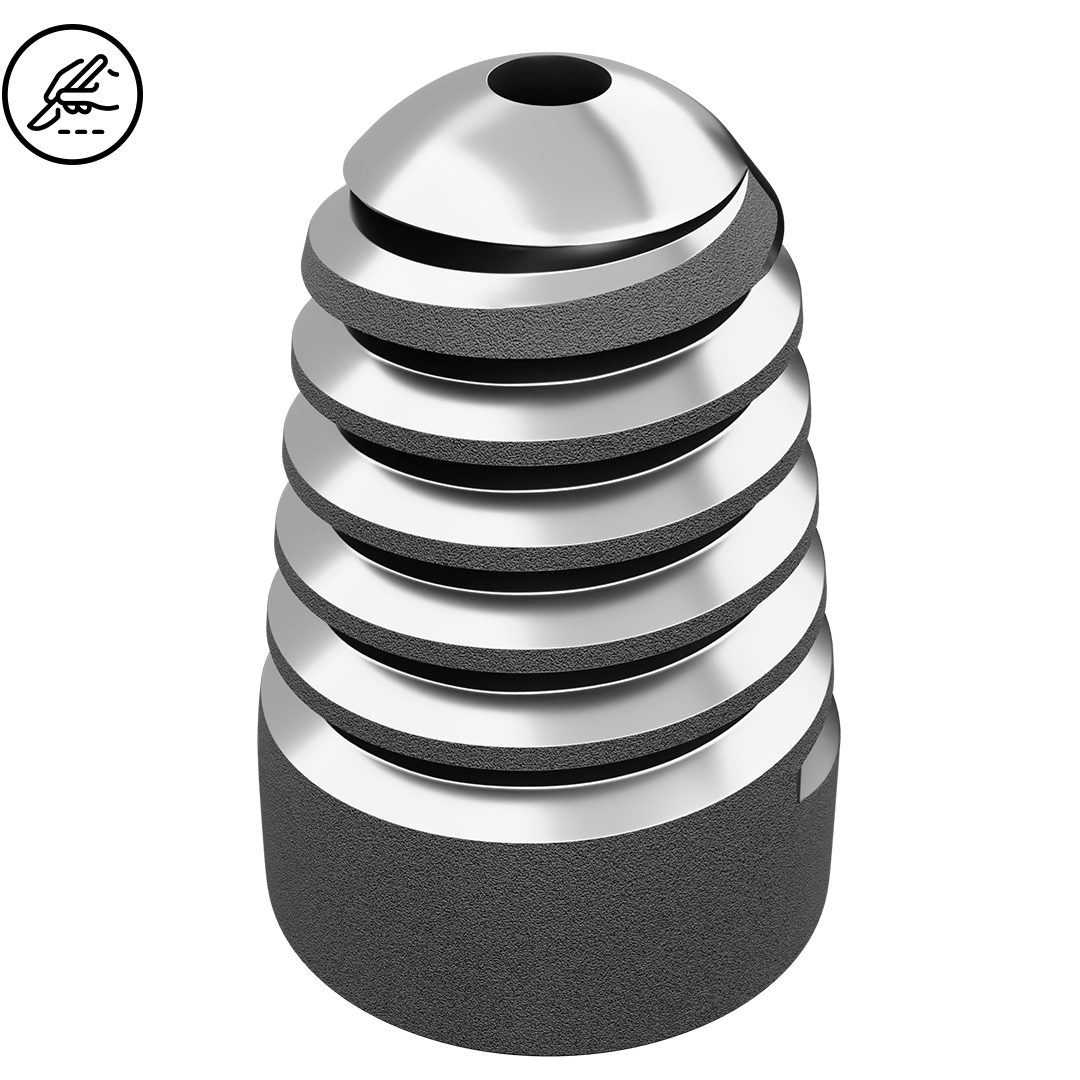

- Cannulated conical endorthesis (7,8,9,10,11,12 mm) Titanium Ti-6AL-4V LATEX FREE – Removal instrumentation for retrieval.
- The subtalar screw has been specially designed to correct and limit excessive flatfoot pronation in adults and children. Inserted and stabilized by its shape in the sinustarsi, it restores the calcaneus to its normal position in relation to the talus and forms an internal arch.
- Sterile package.
| CODE | Ø | LENGTH |
|---|---|---|
| 42-0712 | 7 | 12 mm |
| 42-0814 | 8 | 14 mm |
| 42-0914 | 9 | 14 mm |
| 42-1014 | 10 | 14 mm |
| 42-1116 | 11 | 16 mm |
| 42-1216 | 12 | 16 mm |

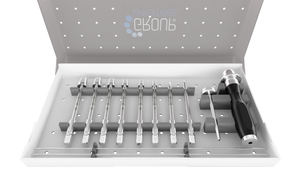

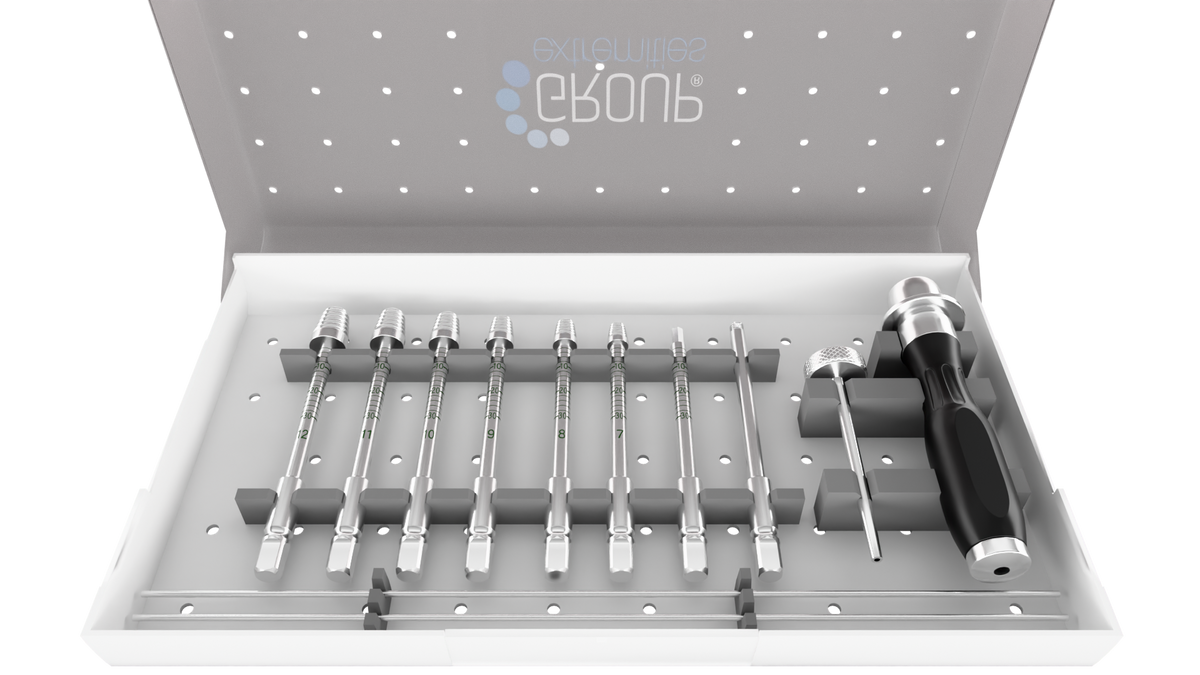

INSTRUMENTATION
| CODE | DESCRIPTION |
|---|---|
| ML-2000 | Endosenotarsal screw instrument set |
| ML-1007 | 7mm thread gauge |
| ML-1008 | 8mm thread gauge |
| ML-1009 | 9mm thread gauge |
| ML-1010 | 10mm thread gauge |
| ML-1011 | 11mm thread gauge |
| ML-1012 | 12mm thread gauge |
| 42-4230 | 3.5mm hex screwdriver |
| 42-4220 | Extractor |
| 42-4240 | Probe |
| 63-1822 | Guide wire |
| 55-2951 |
Slim handle with 1/4 cannulated quick coupling |
| 42-4243 |
Dilator |
